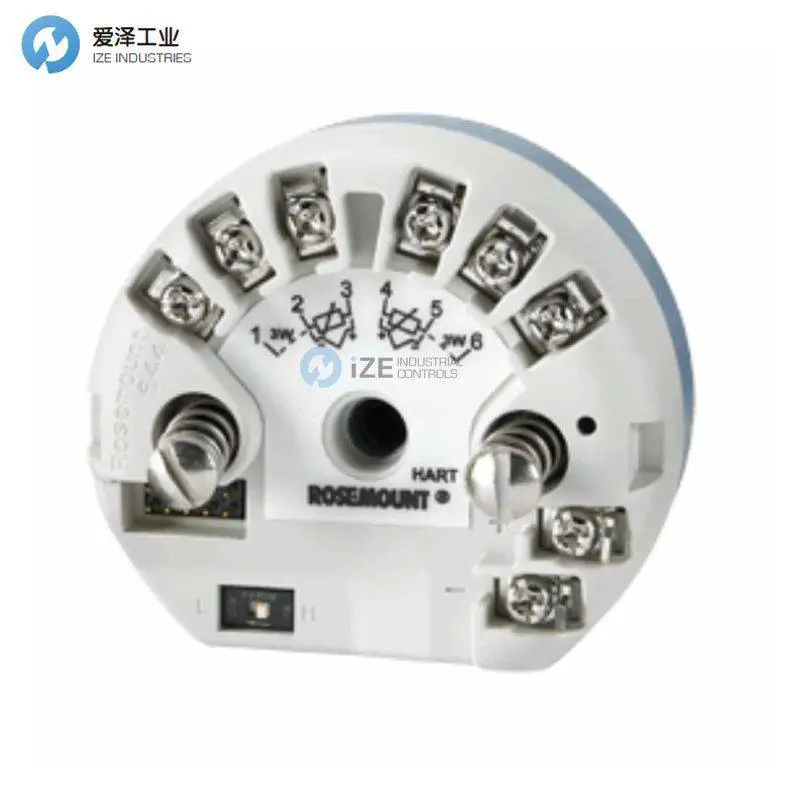

ROSEMOUNT变送器644HAE5J2M5T1

罗斯蒙特产品的成功基于对产品质量以及在Zui恶劣的工业环境下确保可靠性的一贯，全球客户的青睐便是强有力的证明。

ROSEMOUNT变送器644HAE5J2M5T1产品规格

Model：644 温度变送器

变送器类型：H DIN A 头装 — 单传感器输入

输出：A 4–20 mA，带基于 HART® 协议的数字信号

产品认证：E5 美国 防爆；防尘爆炸

外壳：J2 通用接线盒，3 个进线口，铝制，½–14 NPT，3.5 英寸（89 mm）

显示与界面：M5 液晶显示

瞬态保护：T1 内置瞬态保护器

Model：644 Temperature transmitter

Transmitter type：H DIN A head mount - single sensor input

Output：A 4–20 mA with digital signal based on HART® Protocol

 Product certifications：E5 USA Explosion-proof; DustIgnition-proof

 Enclosure:J2 Universal junction box, 3 entries Aluminum½–14 NPT 3.5 in. (89 mm)

 Display and interface:M5 LCD display

 Transient protection:T1 Integral transient protector

ROSEMOUNT变送器644系列介绍

 Rosemount 644 温度变送器专为在温度点丢失可能造成严重后果的控制应用中使用而设计。这些高精度的Rosemount 644 温度变送器提供多种安装样式、现场外壳和通信协议，以满足您苛刻的安装需求。

每台 Rosemount 644 温度变送器为两线制设计，提供 4-20 mA/HART 模拟输出或完全数字的FOUNDATION fieldbus 输出。每台设备可配置为多种传感器输入：RTD（电阻温度检测器）、热电偶、毫伏或欧姆。的Rosemount 644 温度变送器通过传递重要的温度诊断信息和 PlantWeb 警报来支持PlantWeb®，以确保过程健康并实现经济的单传感器架构。

将特定 RTD 传感器的温度-电阻曲线输入到 Rosemount 644温度变送器中，可实现变送器与传感器的匹配。这消除了传感器互换导致的误差，可将精度提高多达 75%。集成的 LCD显示屏可为温度测量和诊断提供本地指示，便于即时且准确地验证过程状态。

Rosemount 644 温度变送器符合 NAMUR NE 21建议，确保在恶劣电磁兼容（EMC）环境中实现zuijia变送器性能。此外，Rosemount 644 HART 型变送器符合NAMUR NE 43 和 NE 89 建议。

Rosemount 644 温度变送器提供良好的安装灵活性。DIN A型头部安装变送器适用于多种外壳以便远程安装，并可与传感器做成一体或远程安装。紧凑的导轨安装样式非常适合拥挤控制室中用于 DIN导轨安装的狭小空间。

特点

用户可选输入

4-20 mA HART 或 FOUNDATION fieldbus 输出

可选五位数集成 LCD 显示屏

输入/输出隔离经 500 VAC rms 测试

707 VDC @50/60Hz

头部安装或导轨安装

 The Rosemount 644 temperature transmitter is designed foruse in control applications where the loss of the temperaturepoints may be detrimental. These highly accurate Rosemount 644temperature transmitters are available in a variety of mountingstyles, field housings, and communication protocols to meet yourdemanding installation re

Each Rosemount 644 temperature transmitter is a 2-wire designproviding either a 4-20 mA/HART or a completely digital FOUNDATIONfieldbus ouput. Each unit can be configured for a variety of sensorinputs: RTD, themocouple, millivolt, or ohm. The advanced Rosemount644 temperature transmitter powers PlantWeb ® by communicatingimportant temperature diagnostics and PlantWeb alerts to ensureprocess health and enable economical single-sensorarchitecture.

Entering the temperature-resistance profile specific to the RTDsensor into the Rosemount 644 temperature transmitter results intransmitter-sensor matching. This eliminates the sensorinterchangeability error, which can improve accuracy by up to 75%.The integral LCD display provides local indication of temperaturemeasurement and diagnostics for immediate and accurate verificationor process conditions.

Meeting the NAMUR NE 21 recommendations, the Rosemount 644temperature transmitter ensures top transmitter performance inharsh EMC environments. In addition, the Rosemount 644 HARTtransmitter meets NAMUR NE 43 and NE 89 recommendations.

The Rosemount 644 temperature transmitter offers great mountingflexibility. The DIN A style head mount transmitters fits a varietyof housings for remote transmitter mounting and can be integral orremote mounted to a sensor. The compact rail mount style is greatfor DIN rail mounting in the tight spaces of a crowded controlroom.

Features

User-selectable inputs

4-20 mA HART or FOUNDATION fieldbus output

Optional five-digit integral LCD display

Input/output isolation tested to 500VAC rms

707VDC @50/60Hz

Head mount or rail mount

ROSEMOUNT变送器其他常用型号：

ROSEMOUNT 644HAE5J2M5T1

ROSEMOUNT 644HAE5J6M5F6

ROSEMOUNT 644HAE5J2M5T1J6F6

ROSEMOUNTT

ROSEMOUNT 644HAK5J6M5F6

ROSEMOUNT 64

ROSEMOUNT Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识和解决方案的优质渠道。

如果有任何关于ROSEMOUNT变送器644HAE5J2M5T1的疑问，请随时与我们沟通。我们将尽解决您的问题。
